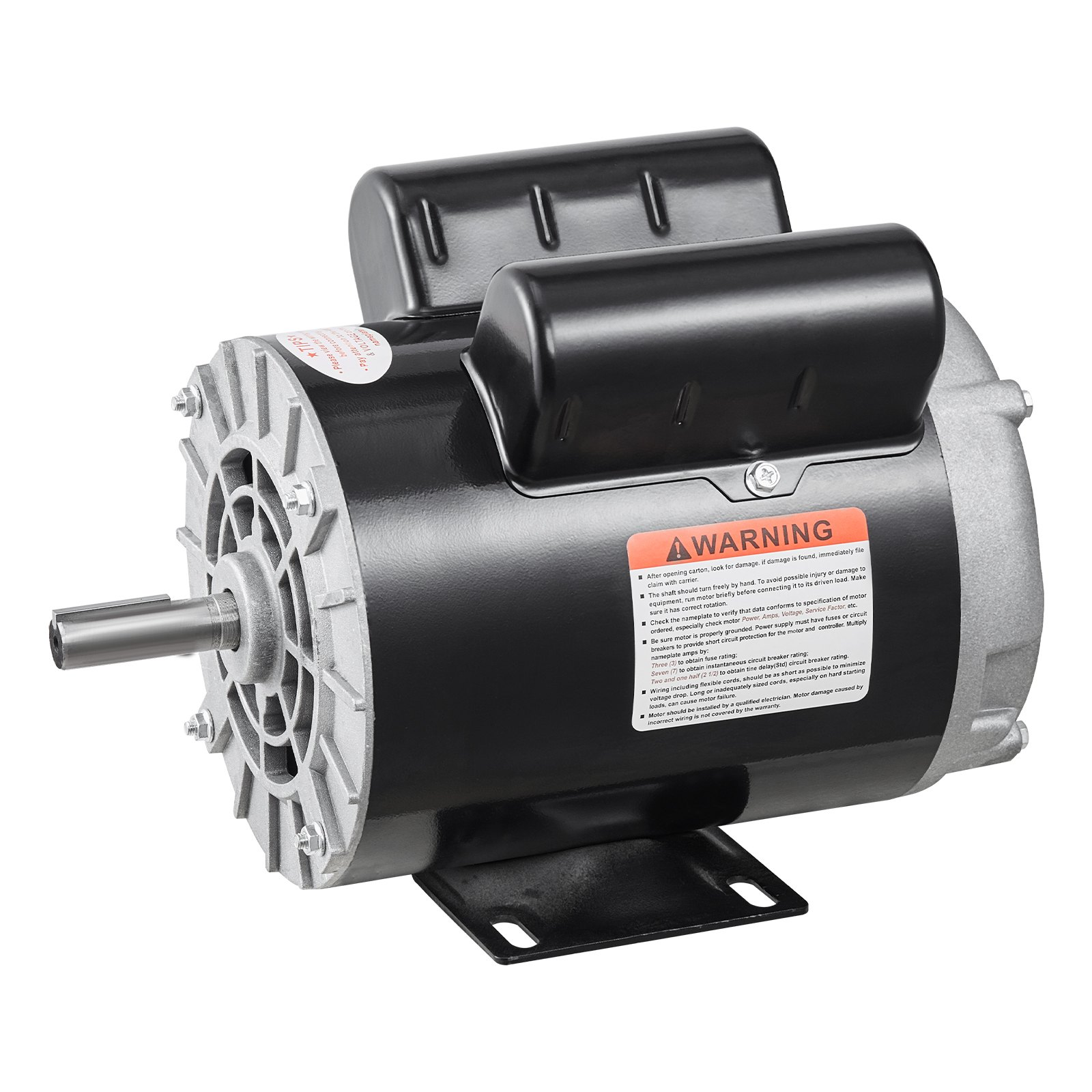

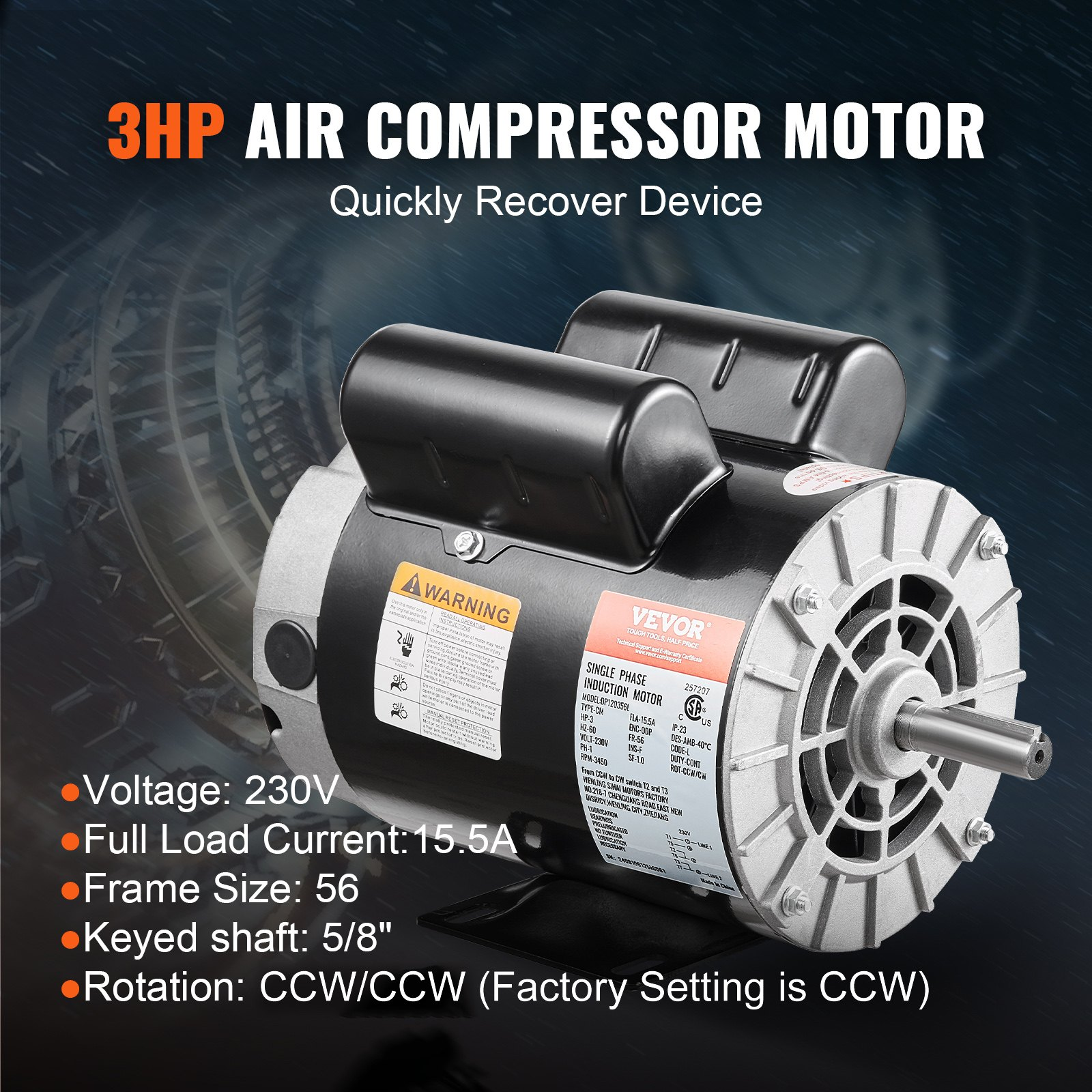

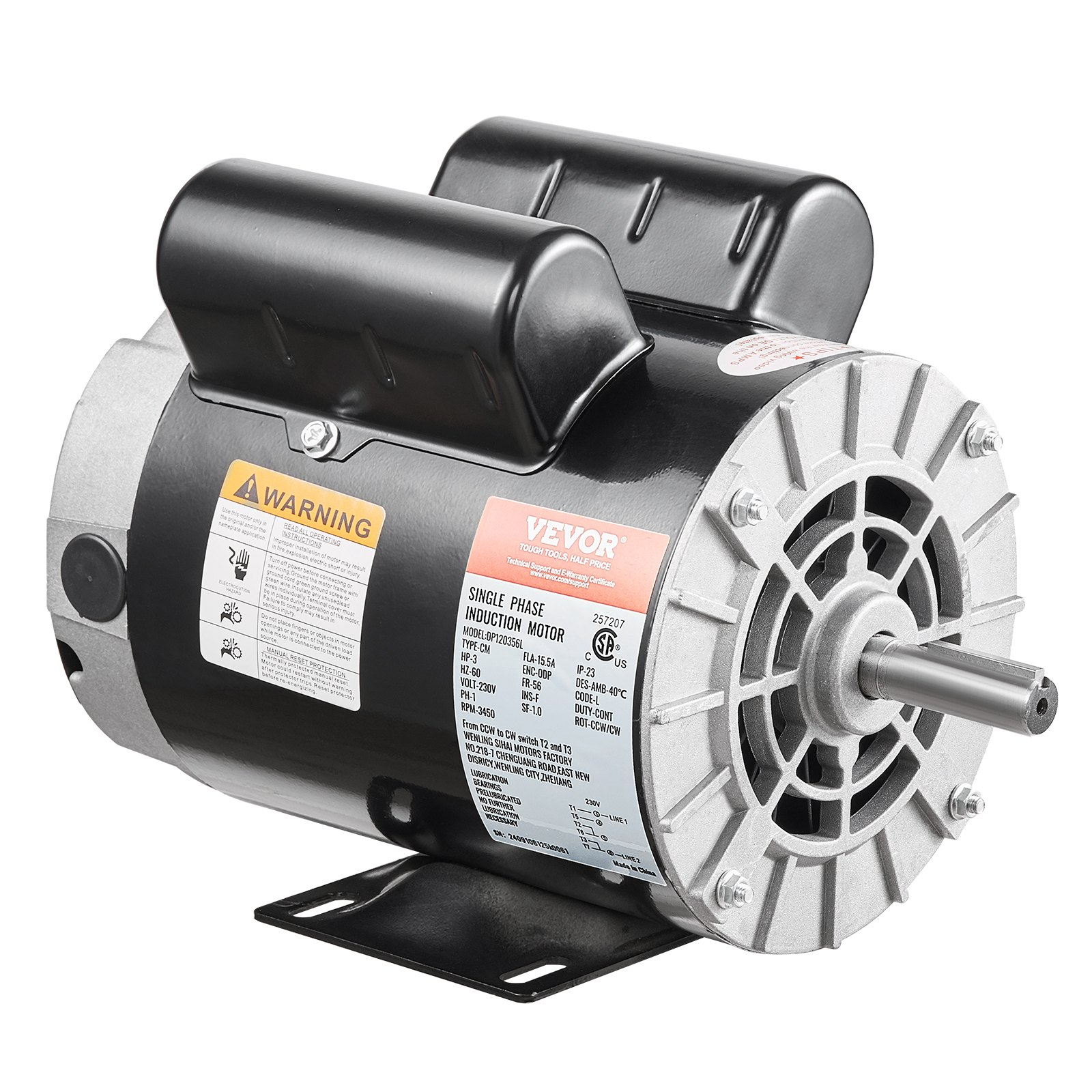

Introducing the Premium 3HP Air Compressor Electric Motor:
-
Powerful Motor: Enjoy robust performance with a 3HP motor designed to handle the toughest jobs.
-

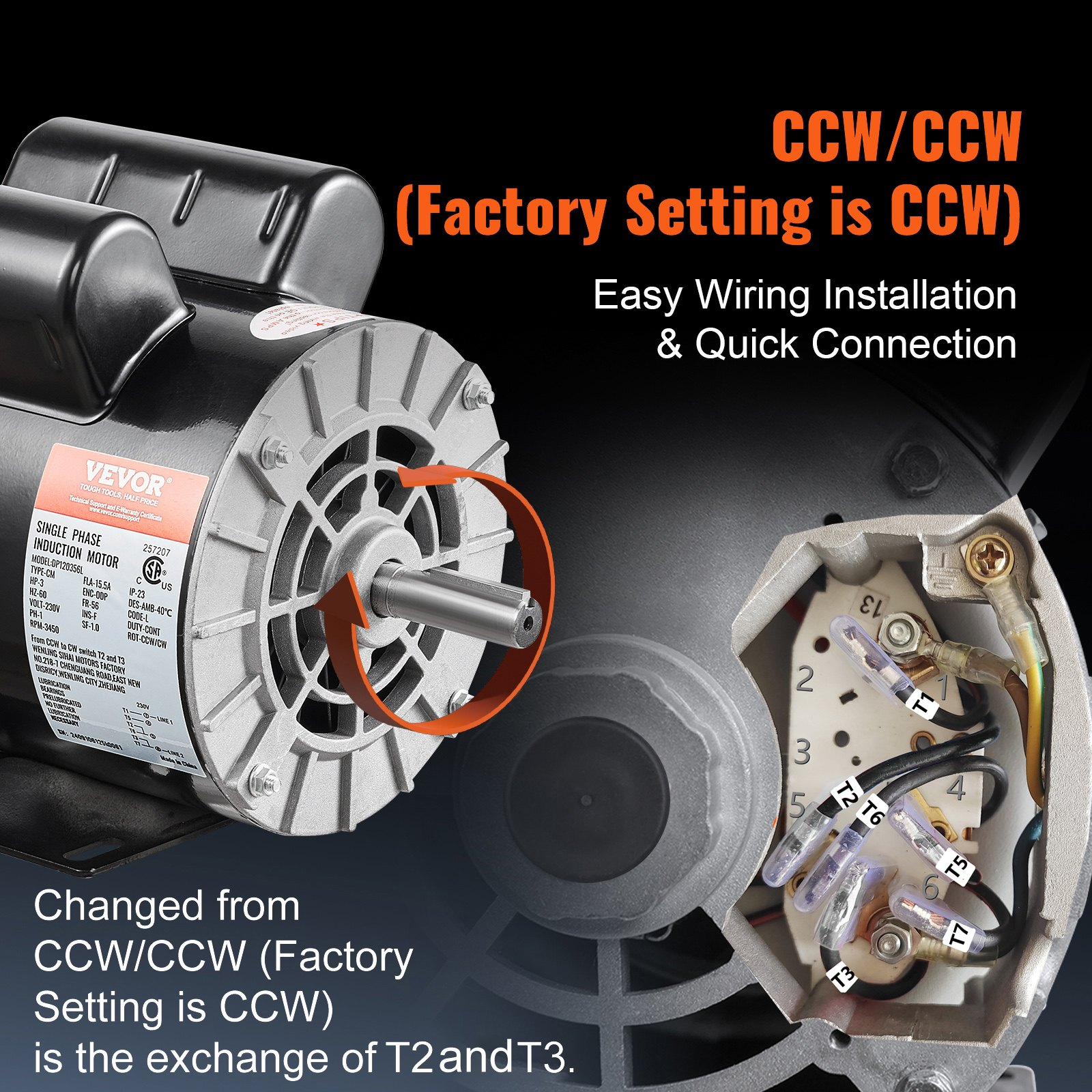

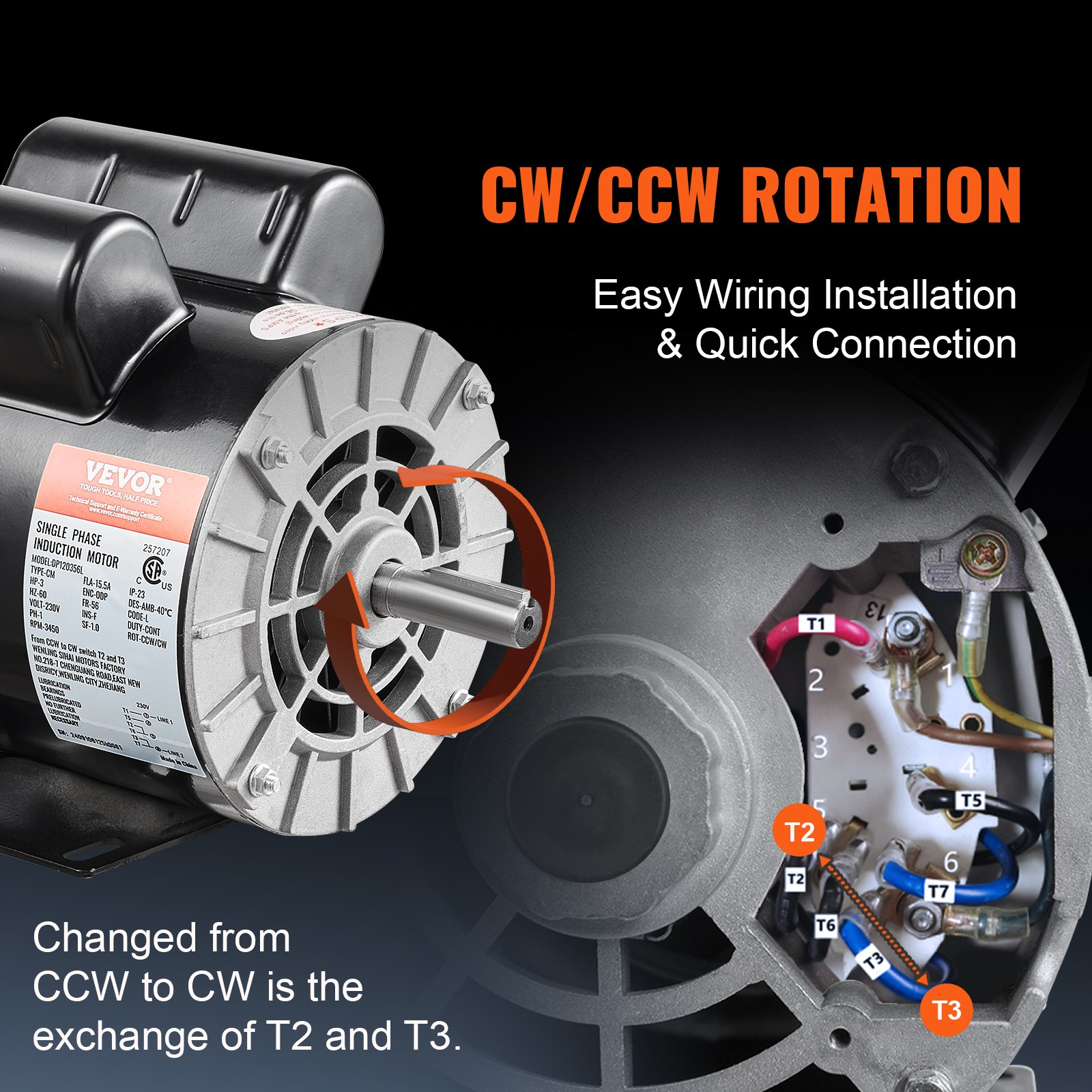

CW/CCW Rotation: Flexible rotation options to suit various applications, whether clockwise or counterclockwise.
-

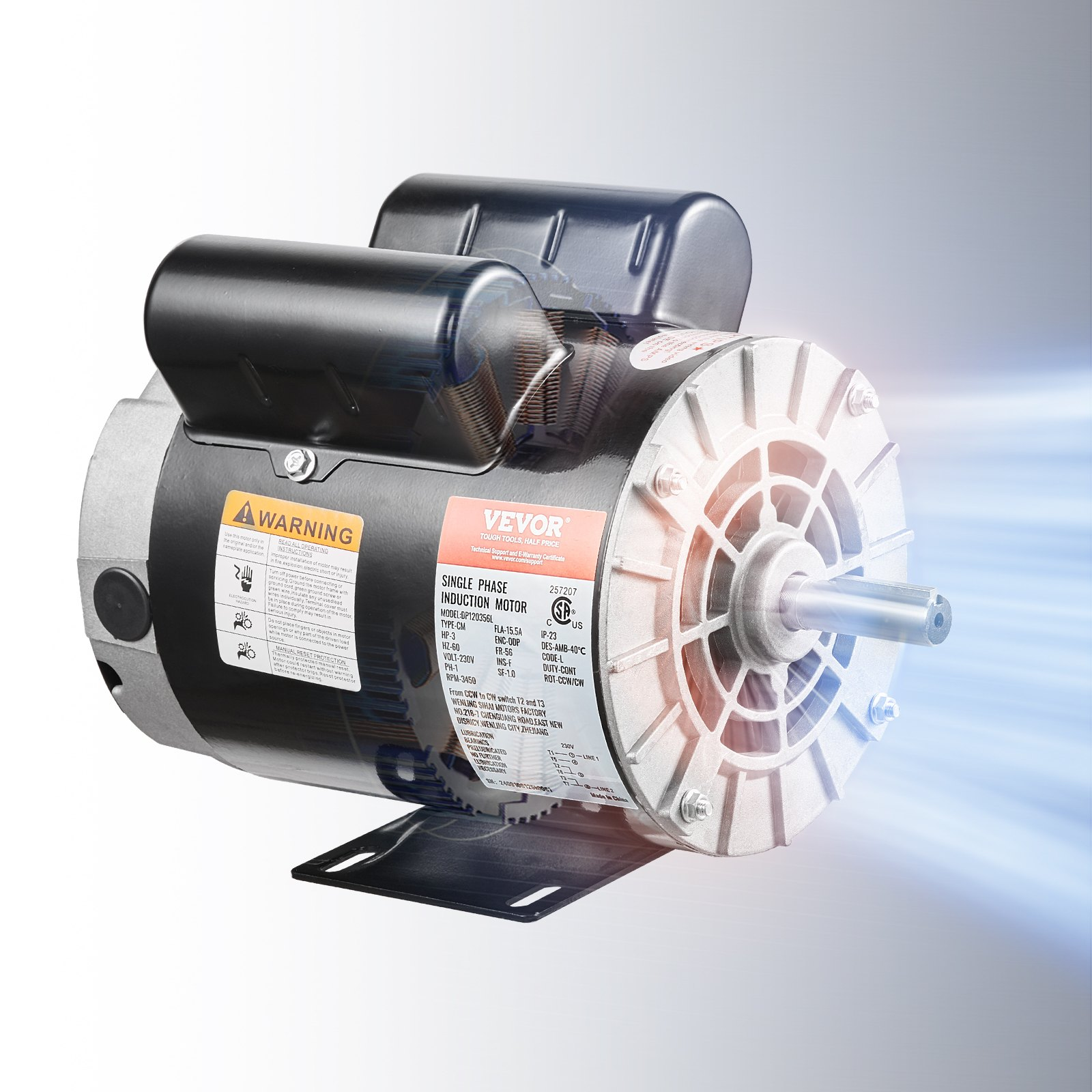

Efficient Cooling: Built with advanced cooling mechanisms to ensure optimal performance and longevity.
-

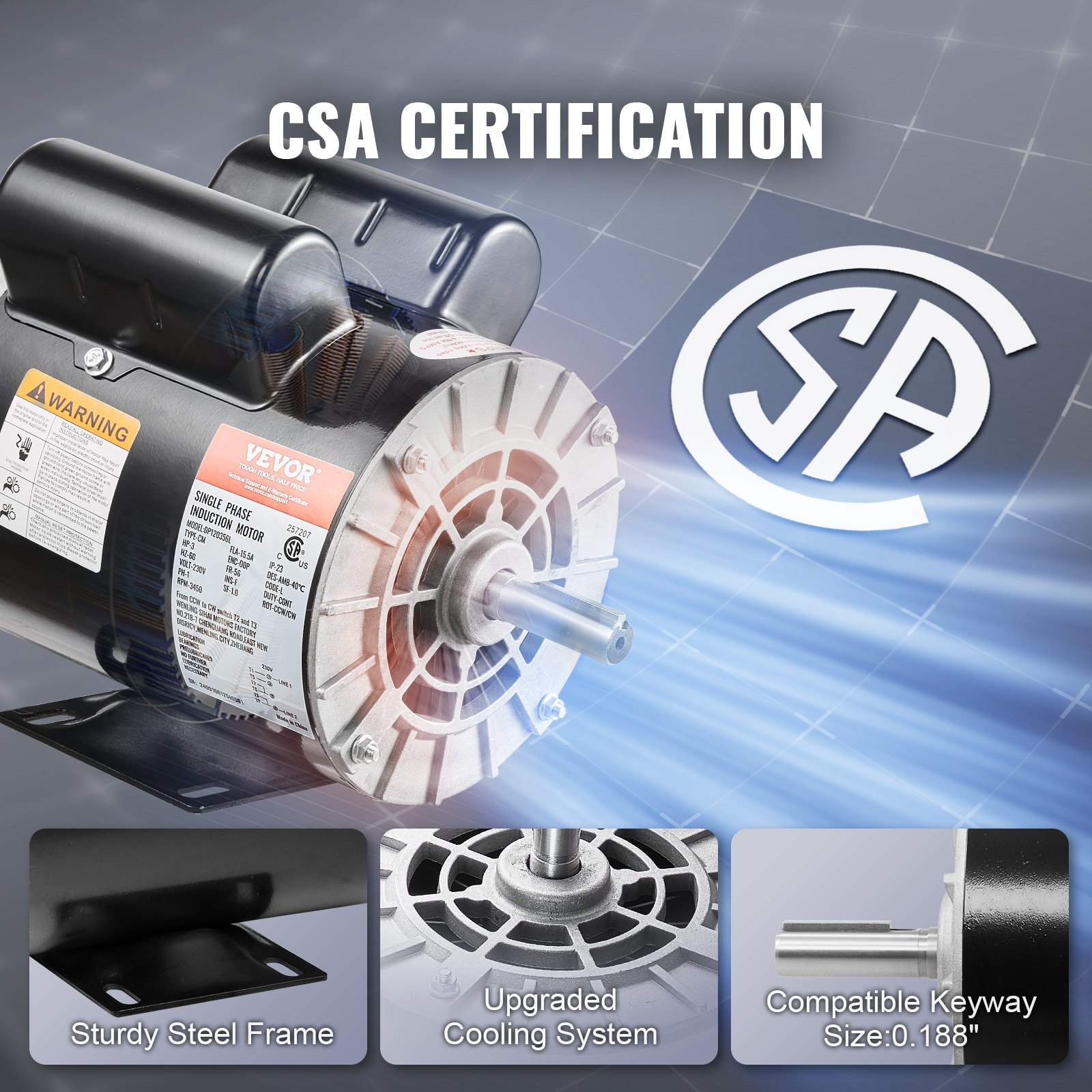

Safety Certification: Meets all necessary safety standards for peace of mind during operation.
-
High-quality Frame: Constructed with durable materials to withstand rigorous use.
-
Safety Protection: Features multiple layers of safety protection to prevent accidents and ensure smooth operation.

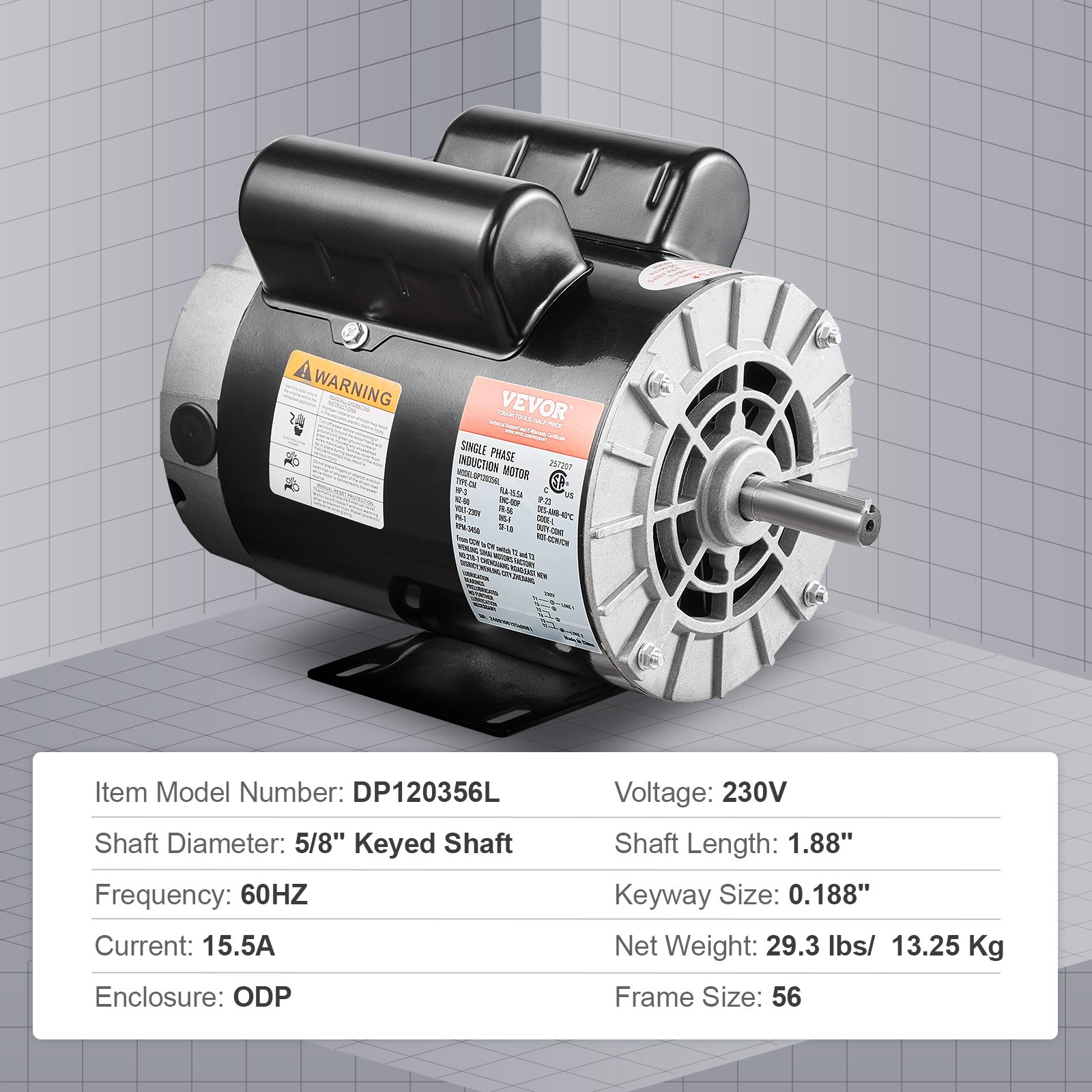

Technical Specifications:
-

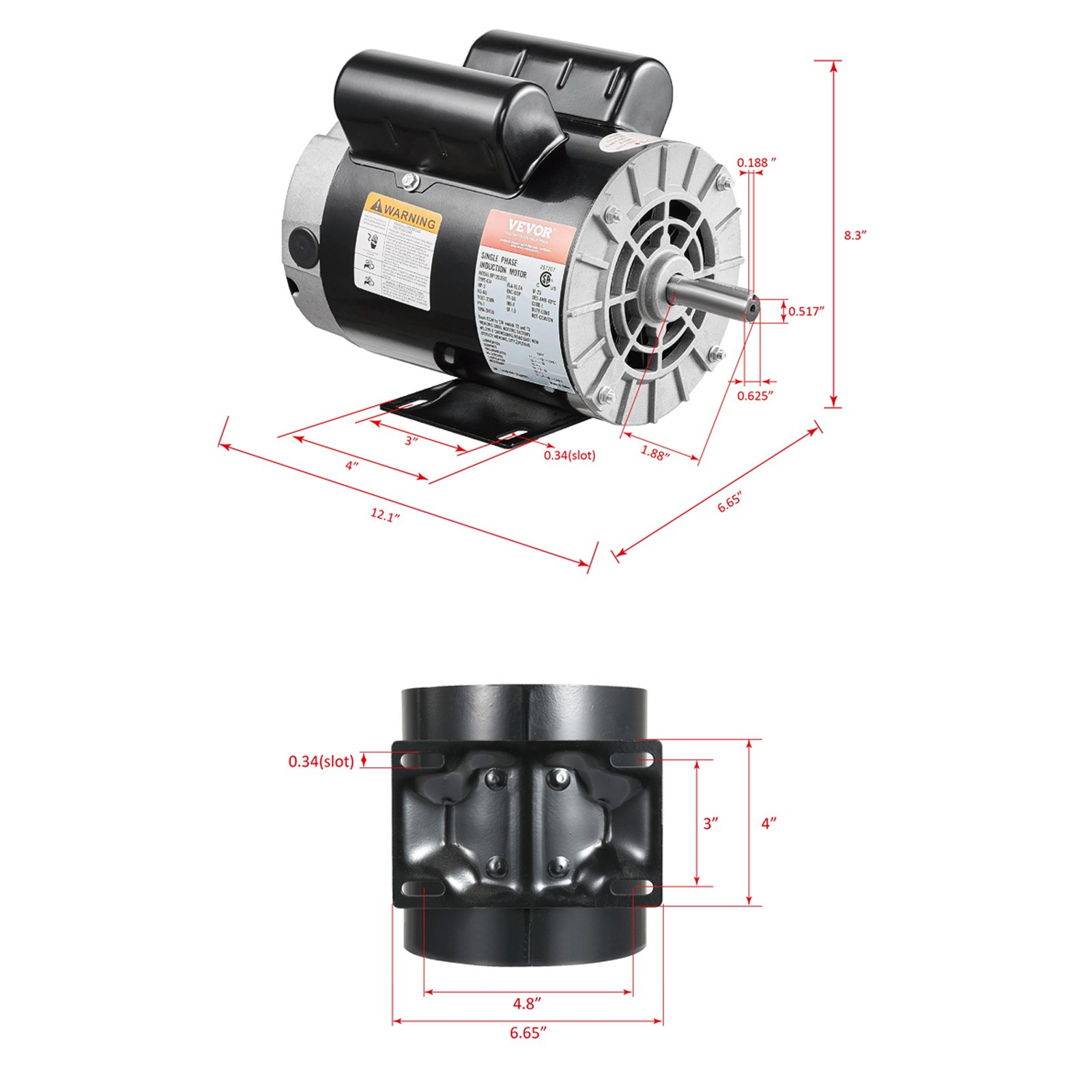

Shaft Length: 1.88"
-
Service Factor (SF): 1.0
-
Voltage: 230V
-

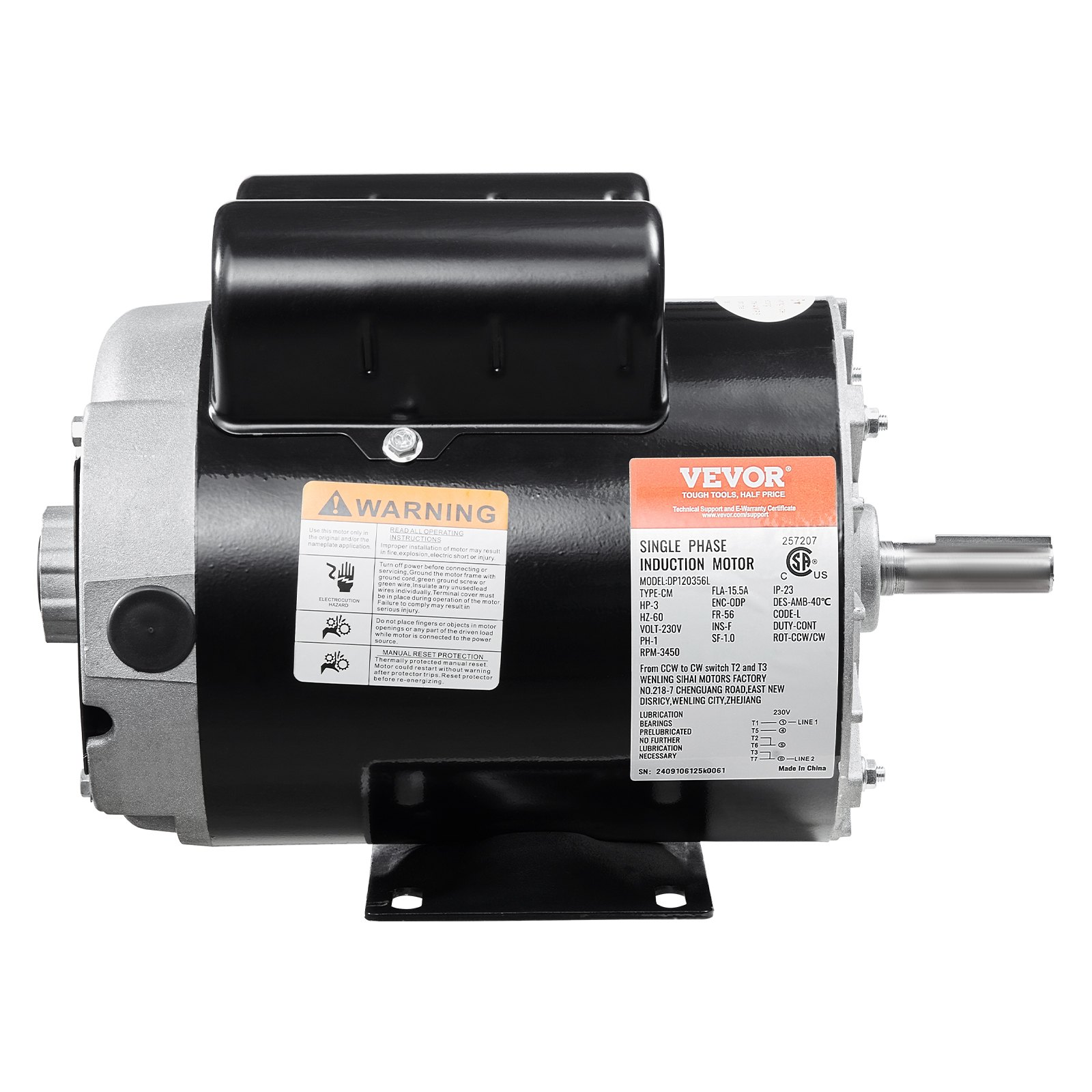

Model Number: DP120356L
-
Frequency: 60Hz
-
Shaft Diameter: 5/8" Keyed Shaft
-
Enclosure: ODP (Open Drip Proof)
-
Current: 15.5A
-
Net Weight: 29.3 lbs / 13.25 Kg
-
Keyway Size: 0.188"
-

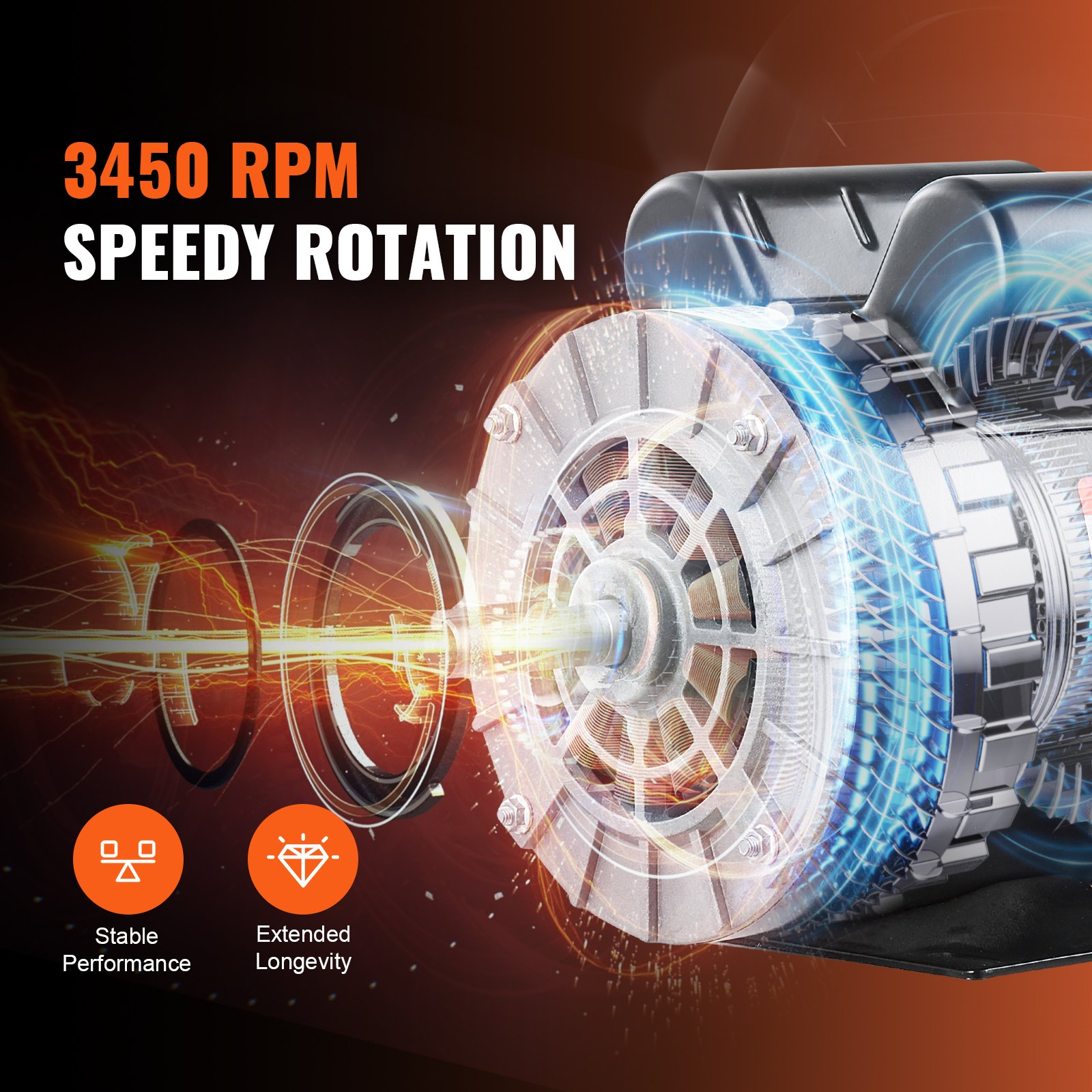

Rotation Speed: 3450 RPM
-
Frame Size: 56
Specifications:
- Length: 37.0 in, Width: 23.5 in, Height: 28.0 in
