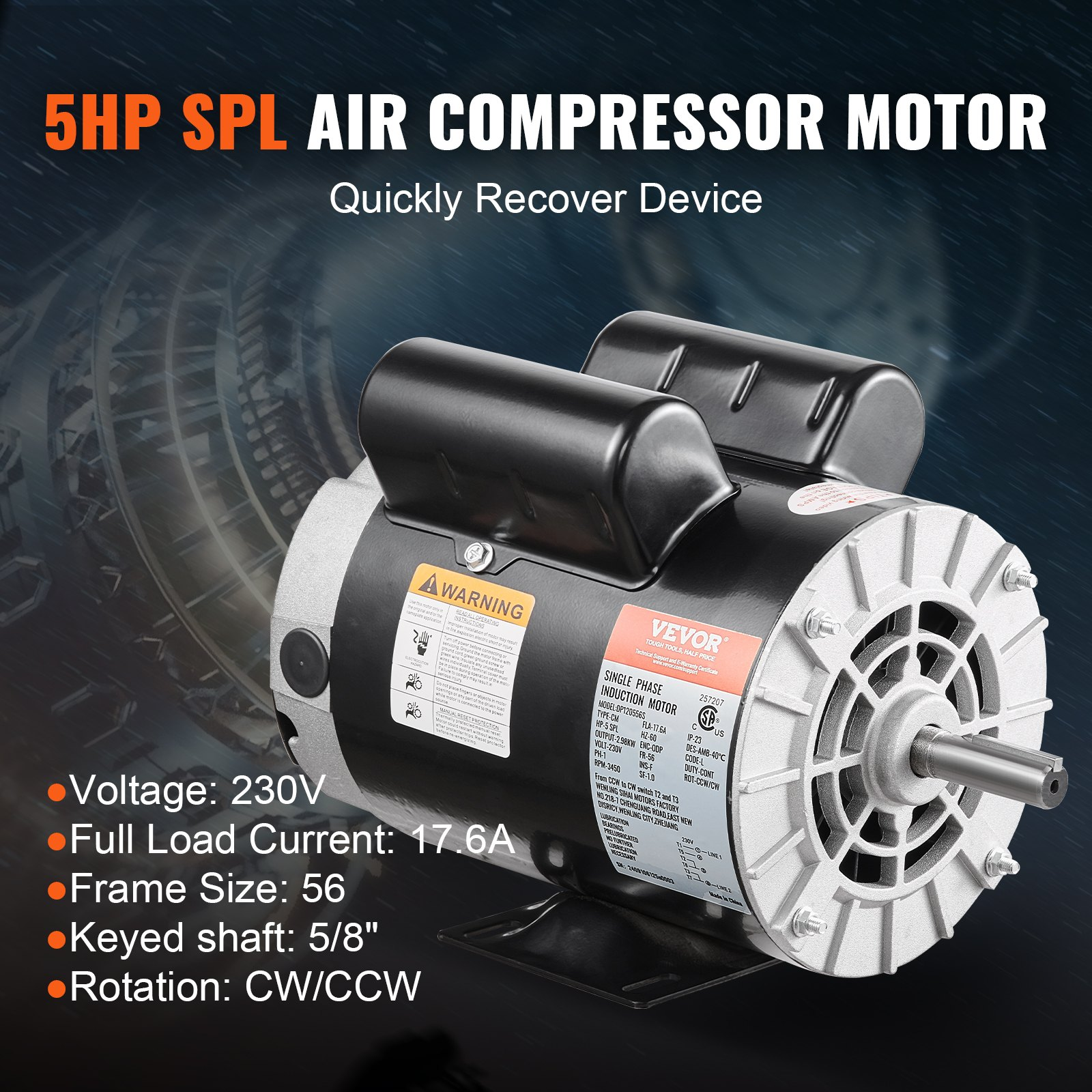

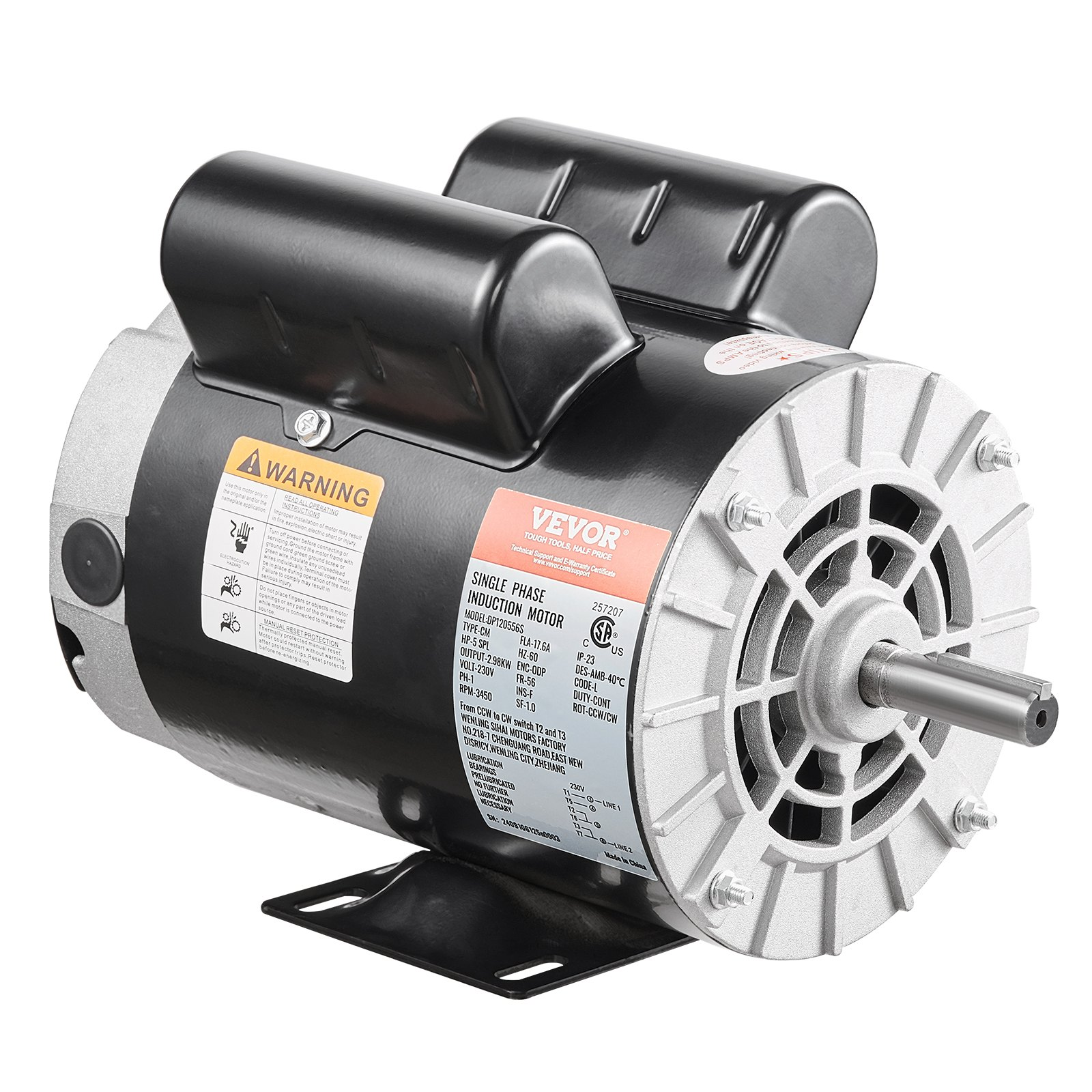

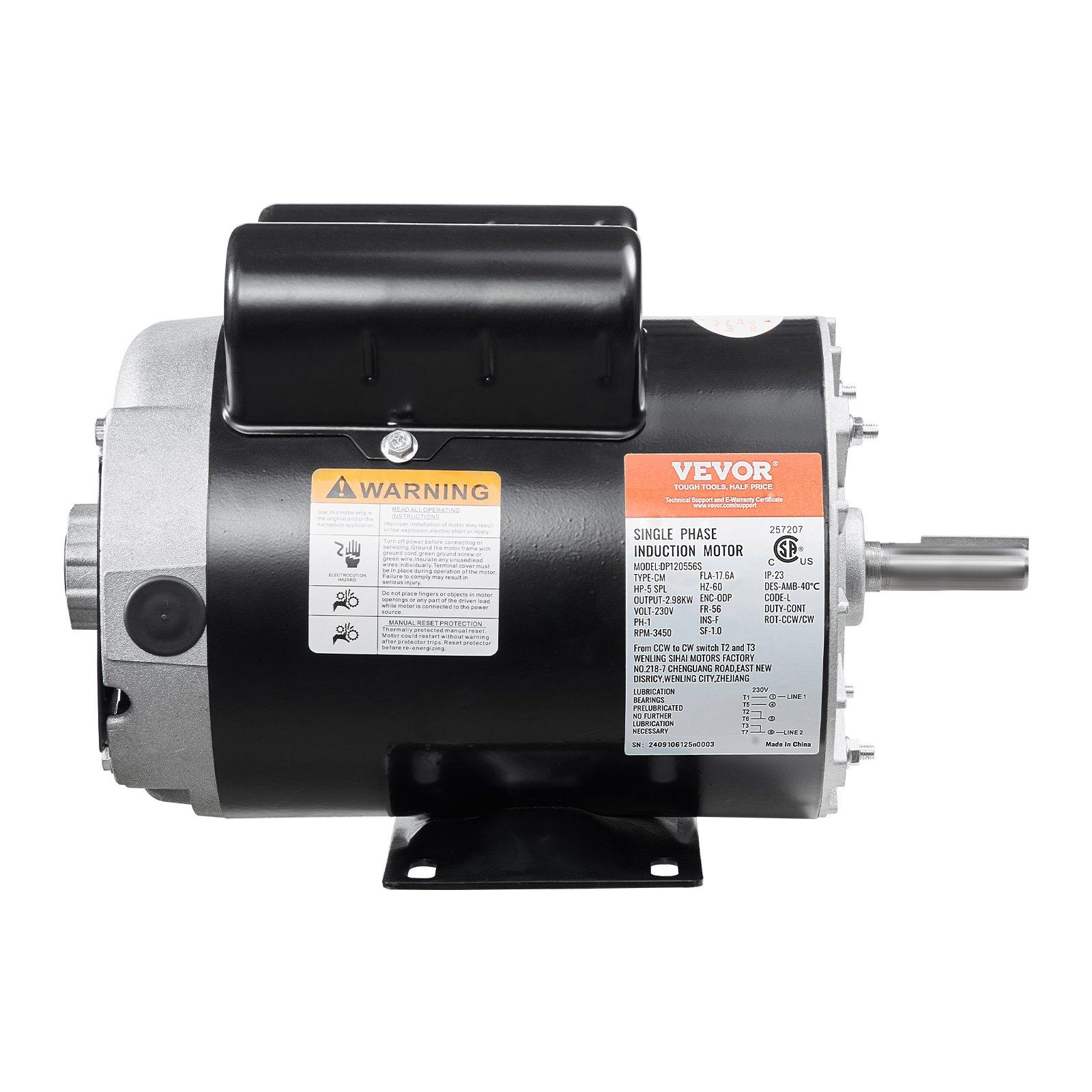

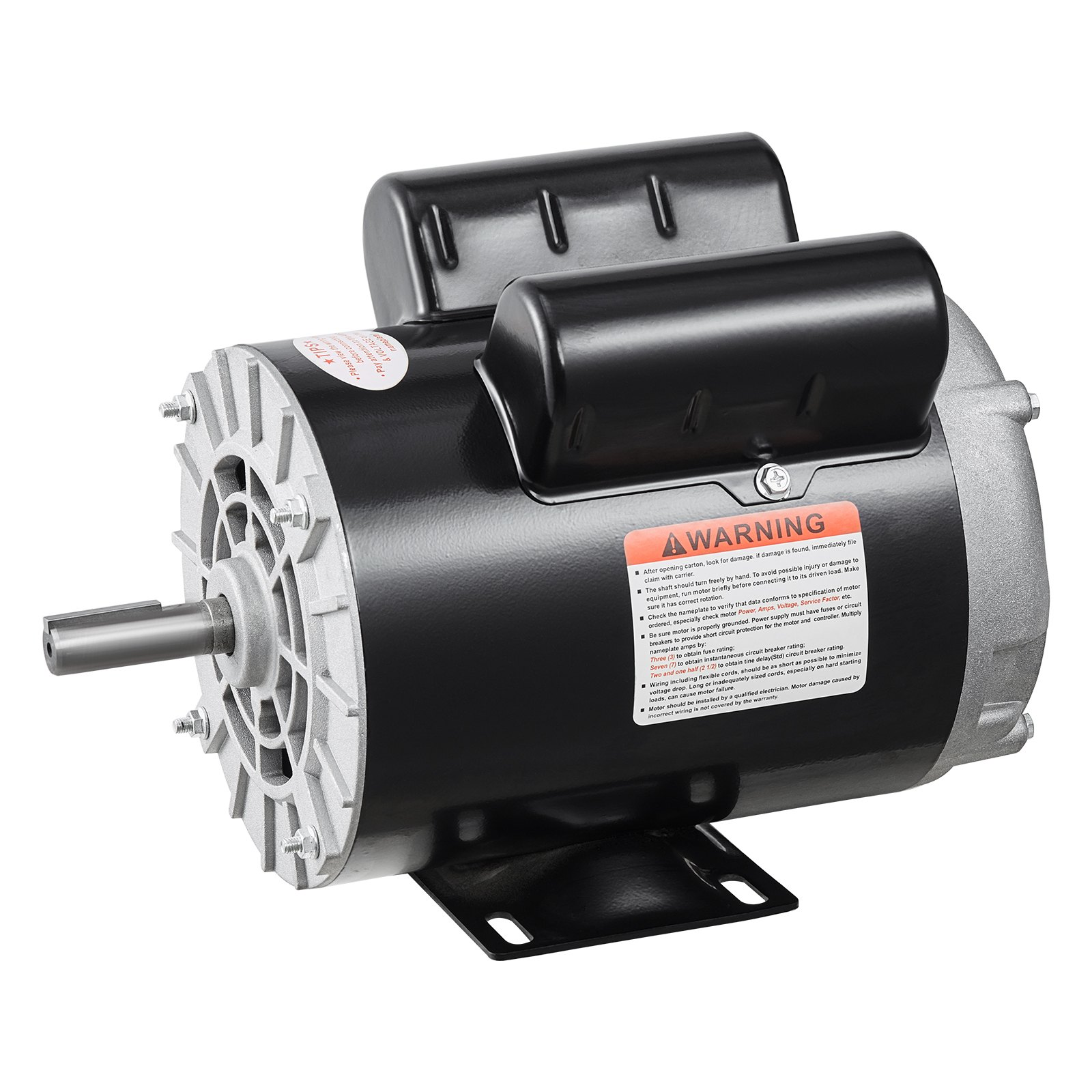

Product Overview: Upgrade your air compressor with this powerful
5HP SPL Air Compressor Motor. Designed for efficiency and reliability, this motor operates at
230V and
17.6A, delivering a high rotational speed of
3450RPM.
Key Features:
-
Powerful 5HP Motor: Delivers high performance for heavy-duty air compressor tasks.
-

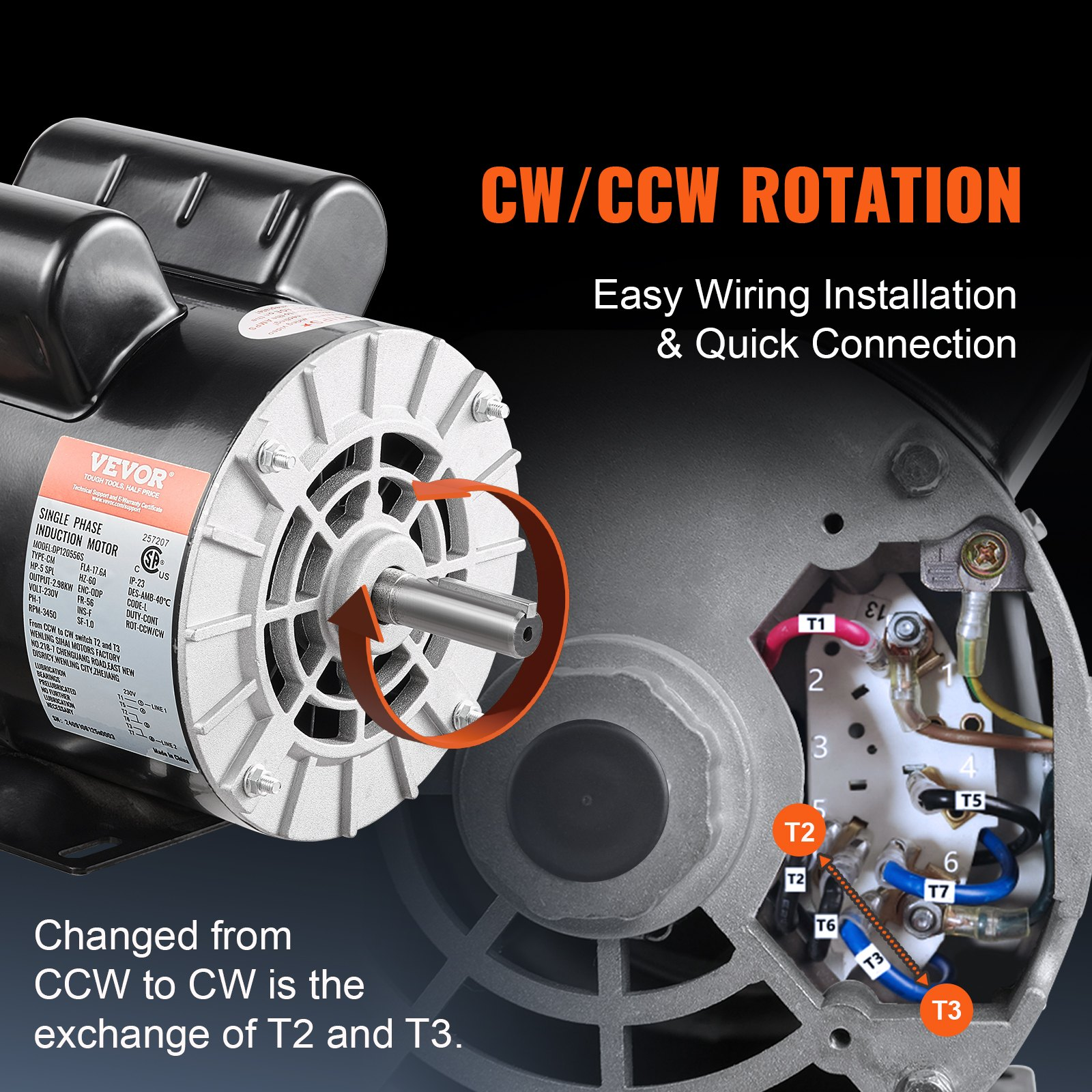

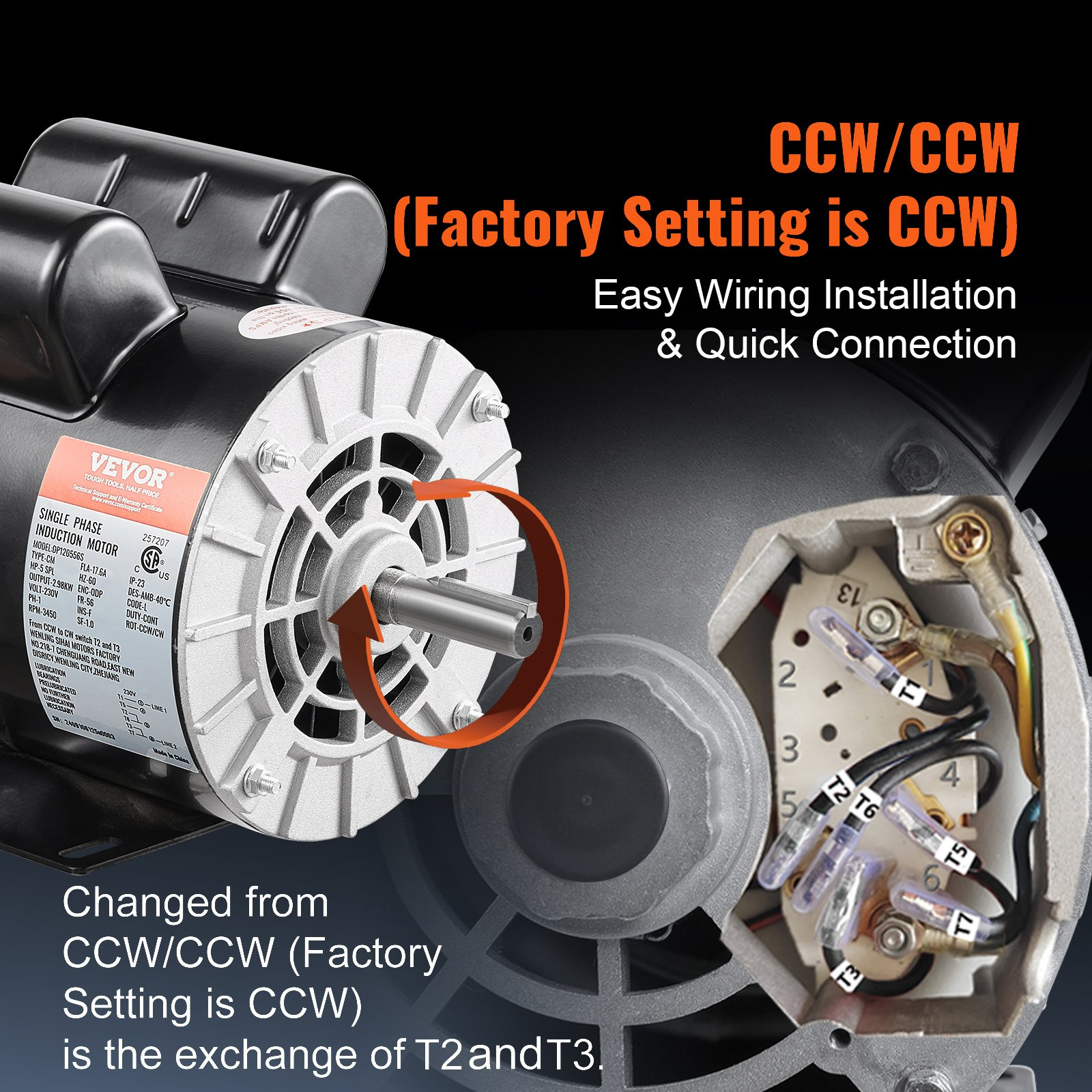

Dual Rotation: Capable of both CW (Clockwise) and CCW (Counter Clockwise) rotation for versatile applications.
-

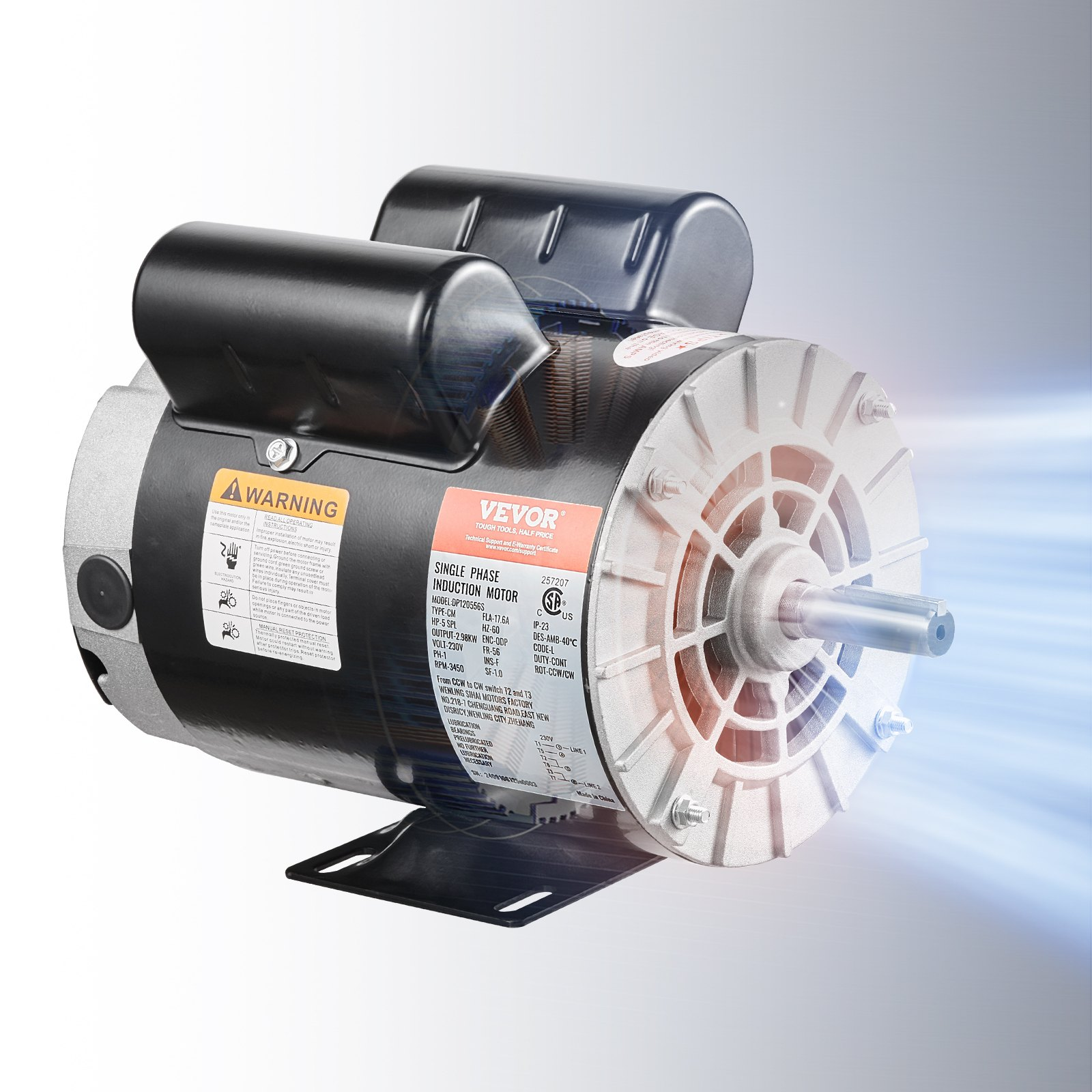

Efficient Cooling System: Ensures optimal performance and longevity of the motor.
-

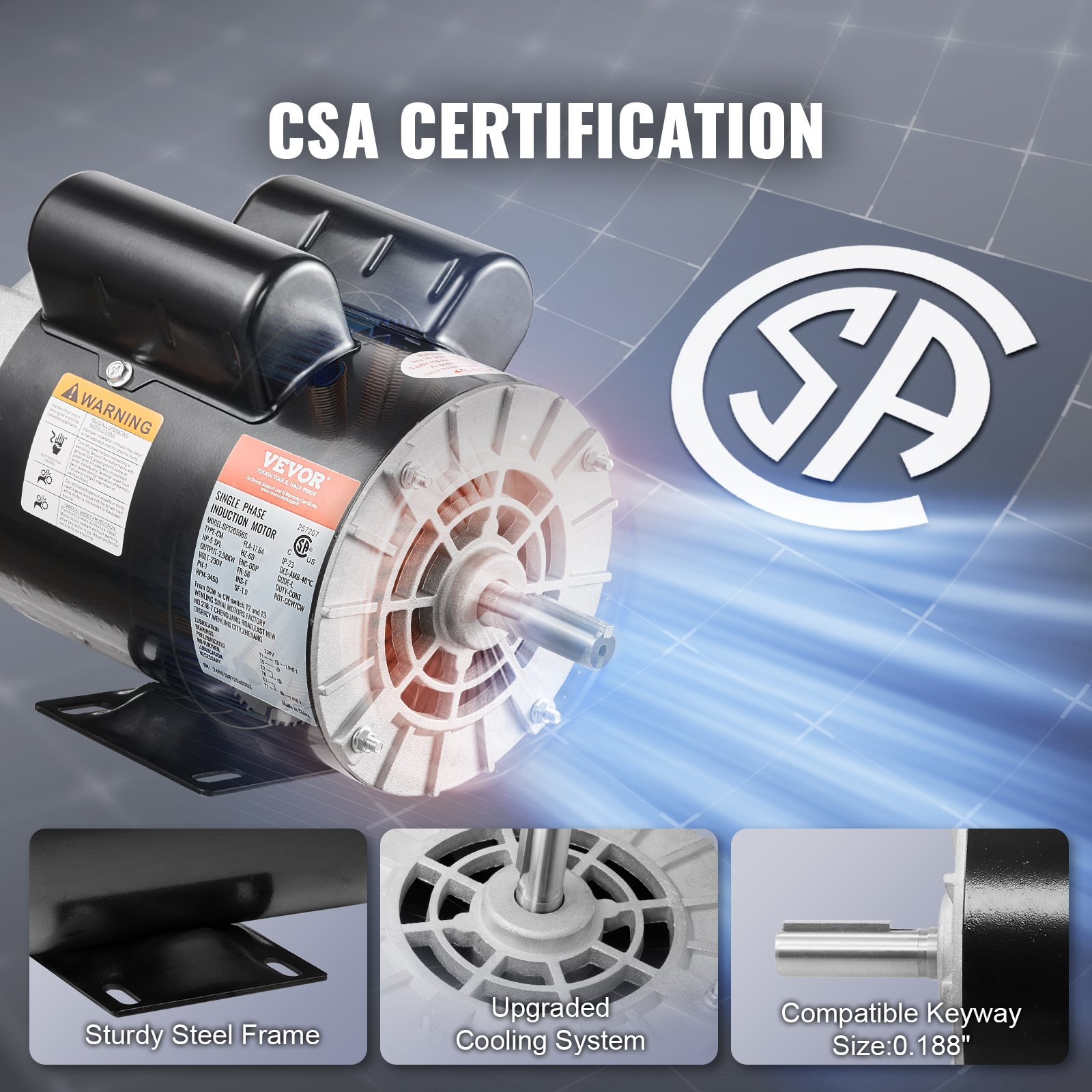

Safety Certified: Comes with necessary safety certifications for worry-free operation.
-
High-Quality Frame: Constructed with a durable 56 Frame for enhanced durability.
-
Safety Protection: Integrated safety features to prevent overheating and overloading.

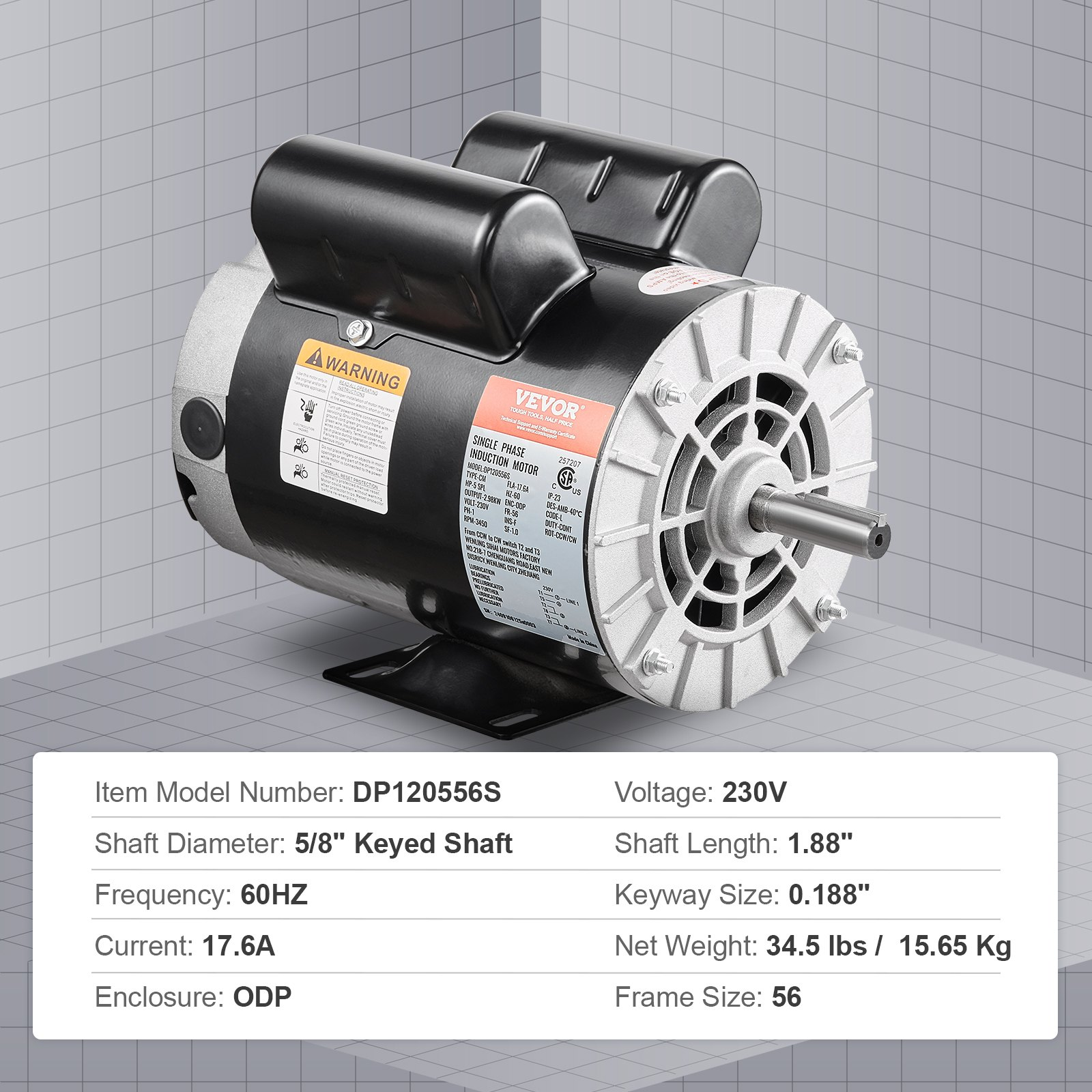

Specifications:
-

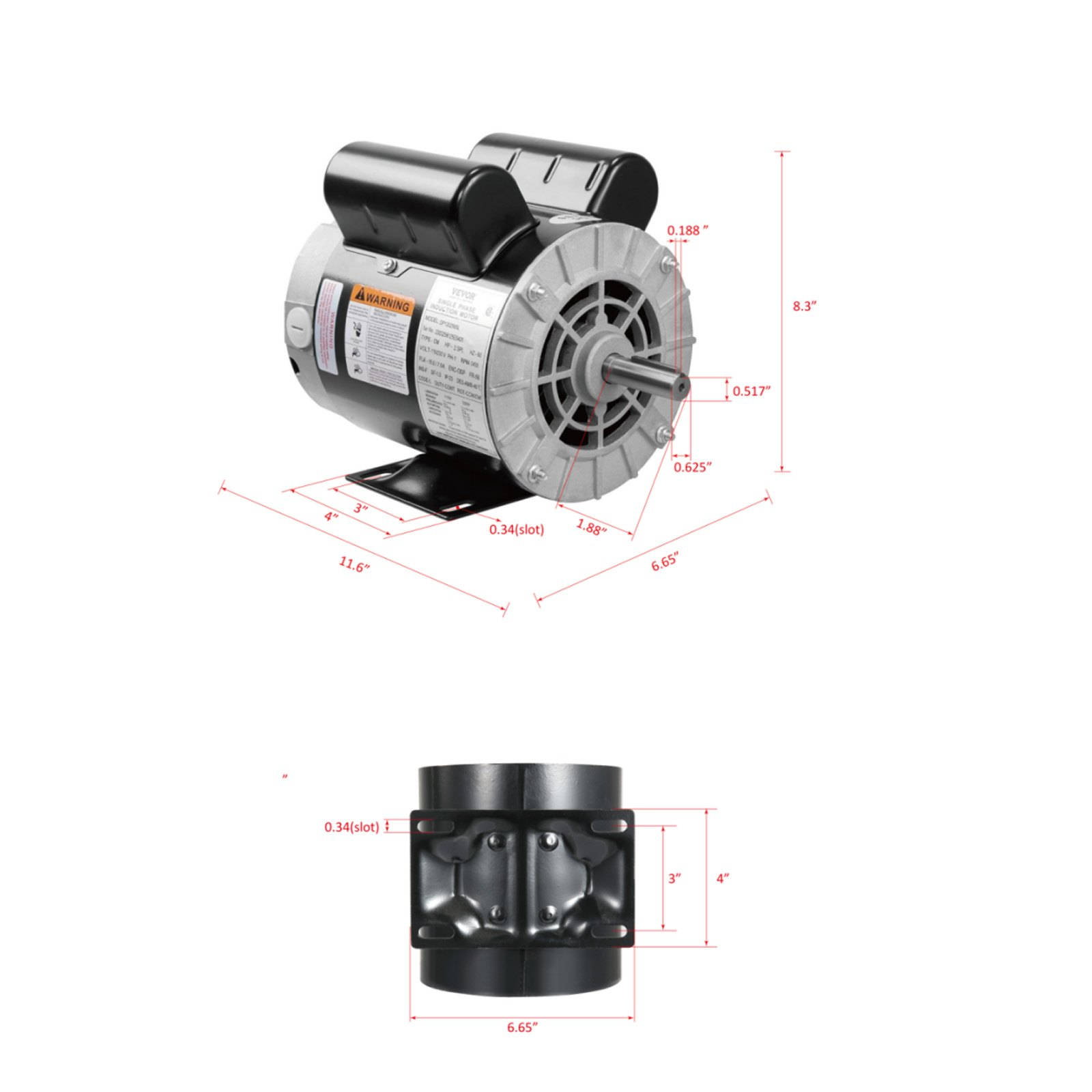

Shaft Length: 1.88"
-
Service Factor (SF): 1.0
-
Voltage: 230V
-
Frequency: 60HZ
-
Shaft Diameter: 5/8" Keyed Shaft
-
Enclosure: ODP (Open Drip Proof)
-
Current: 17.6A
-
Net Weight: 34.5 lbs / 15.65 Kg
-
Keyway Size: 0.188"
-

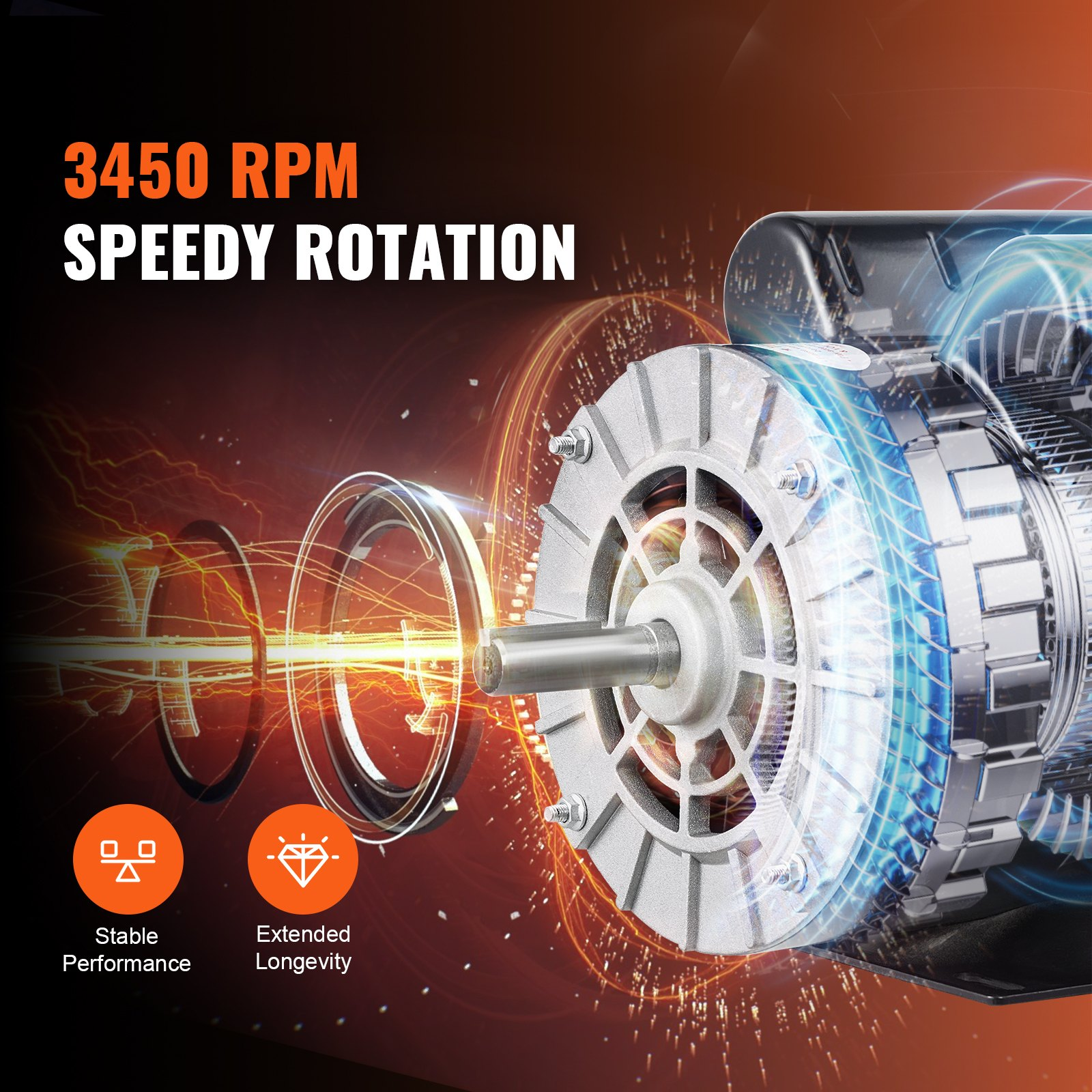

Rotation Speed: 3450RPM
-
Frame Size: 56
Specifications:
- Length: 37.0 in, Width: 23.5 in, Height: 28.0 in
